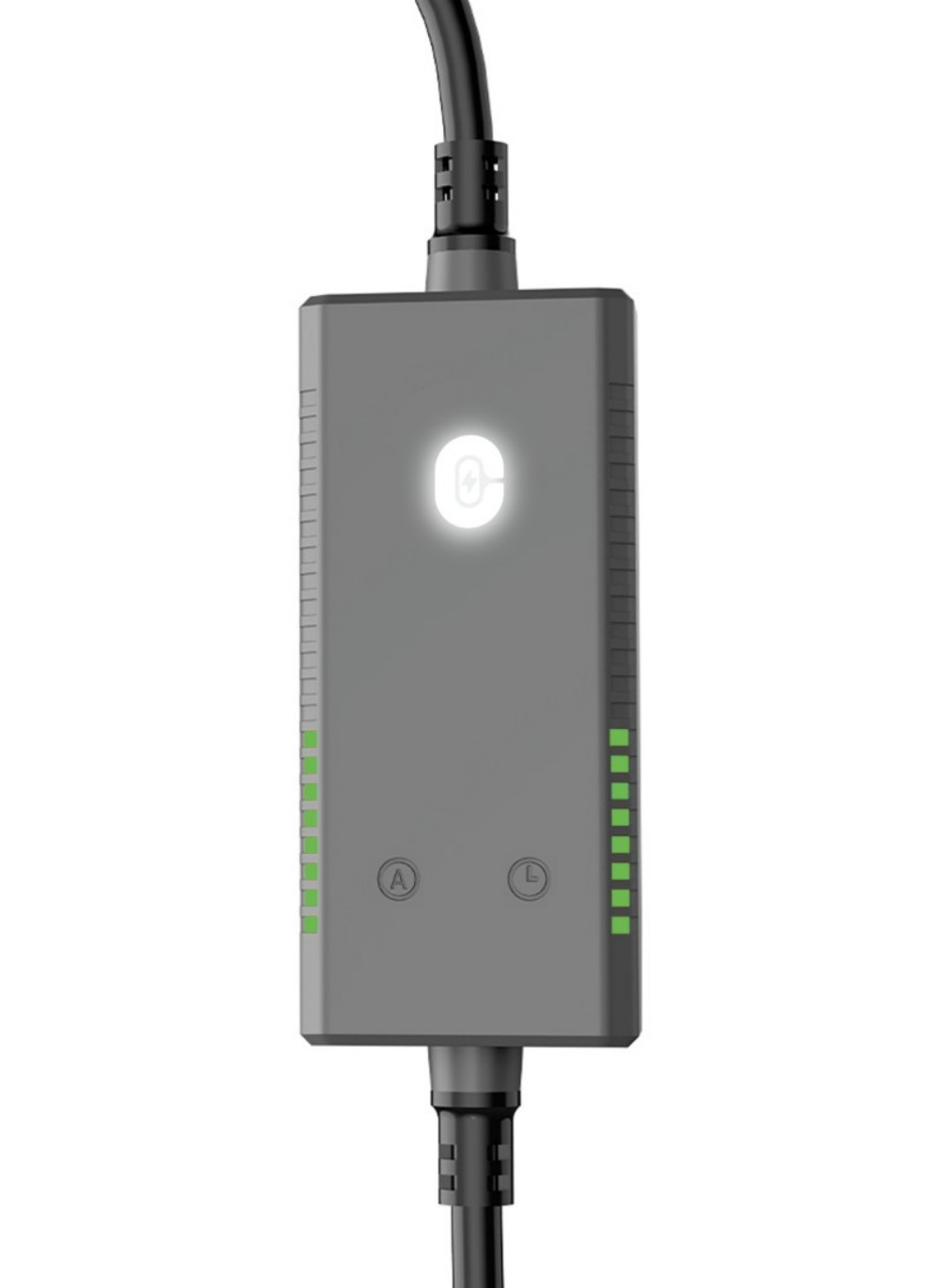

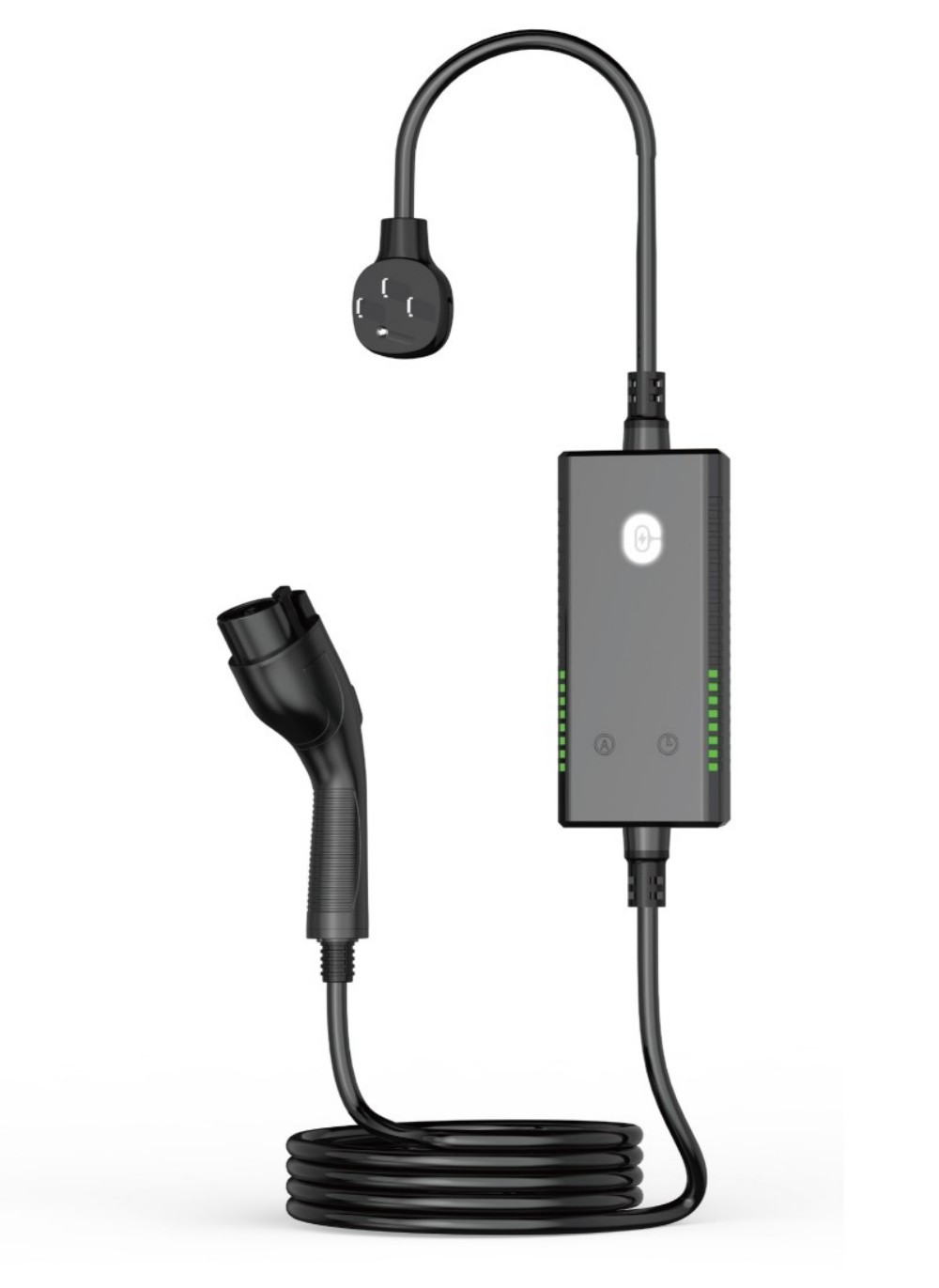

A SERIES

ONBOARD LEVEL 2 EV CHARGER

Charge anywhere with the A-Series Level 2 EV Charger. Compact yet powerful, it delivers 7.7 kW on 240 V and works with 120 / 208 / 240 V outlets. Built to last with NEMA 4X watertight protection and a 24 ft cable, it offers smart control through Wi-Fi and Bluetooth for effortless daily charging.

OUT OF STOCK
  • FEATURES
  • SPECIFICATIONS

Description

A compact and reliable Level 2 EV charger designed for everyday convenience. The Chargeware A-Series supports 120 / 208 / 240 V grids and delivers up to 7.68 kW on 240 V. With selectable 10 / 16 / 24 / 32 A output, it adapts to more circuit capacities and is ideal for both home and travel use. The watertight NEMA Type 4X housing and built-in safety protections ensure dependable charging in all weather conditions.

  • NEMA Type 4X enclosure rated for −22 °F ~ 122 °F operation.

  • 24 ft (7.3 m) commercial-grade cable with Type 1 (SAE J1772) connector.

  • Over-voltage, under-voltage, overheating, over-current, and leakage protection for safe daily use.

Compatible with NEMA 5-15 and NEMA 14-50 power cords; optional J1772 → NACS adapter available. Certified to UL2594 / UL2231 standards with 24-month warranty.

POWER
Input/Output Power Rating & Maximum Current
7.68kW (240V AC, 10~32A)
Input/Output Voltage
120/208/240V ±15%, 50/60Hz
Adjustable Current
10/16/24/32A
Connector Type
Type 1 (SAE J1772)
Cable
24ft (7.31m) commercial grade
Protection
Over voltage, Under voltage, Overheating, Overcurrent, Leakage, Grounding, Lightning protection
Power Cord
NEMA 14-50P
Adapter
NEMA 14-50R to NEMA 5-15P
OPERATIONAL RATINGS
Enclosure Rating
NEMA Type 4X (Watertight)
Operating Temperature Range
-22⁰F ~ 122⁰F (-30⁰C ~ 50⁰C)
Storage Temperature Range
-40⁰F ~ 185⁰F (-40⁰C ~ 85⁰C)
Installation
Wall mounted
Dimensions(H × W × D)
7.9 x 3.5 x 1.6 inches (200 × 90 × 40 mm)
Weight Total
4.4lbs (2kg)
USER INTERFACE
Status Indicator
LED Light
Connectivity
WiFi/Bluetooth
Charging Modes
Plug and charge/Schedule charging/APP control
APP
Charging remote controllable & OTA supported
CERTIFICATION & STANDARDS
Safety & Compliance
UL2594, UL2231
EMC Compliance
FCC Part-15
Warranty
24 Months
Certification
COMPATIBILITY
*Optional Type 1 (J1772) to NACS adapter available
NEMA 5-15
NEMA 14-50
Type 1-J1772
*NACS
