T Series

Power Your Drive with Chargeware – Reliable Charging, Wherever the Road Takes You.

Home T Series
T SERIES

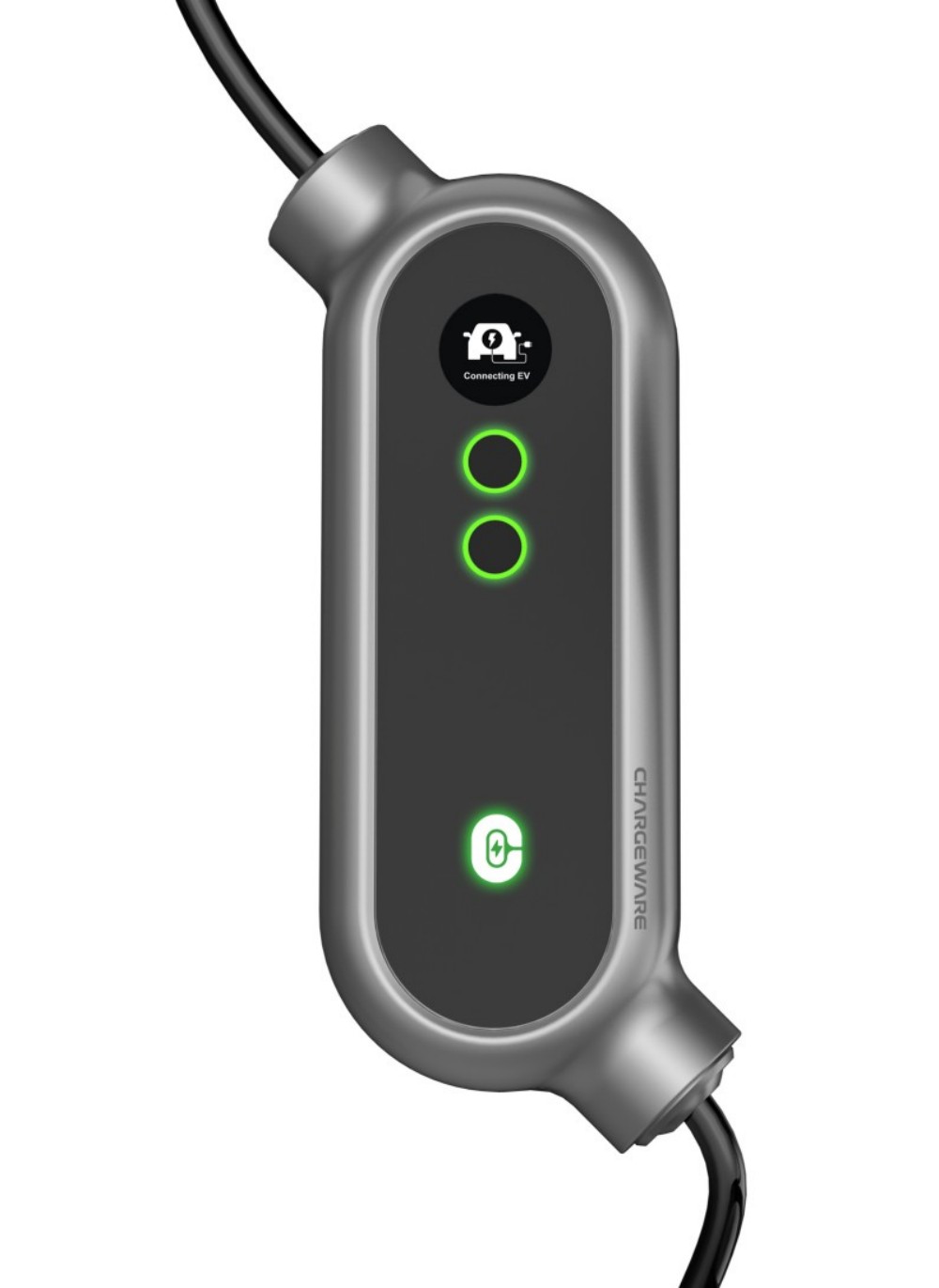

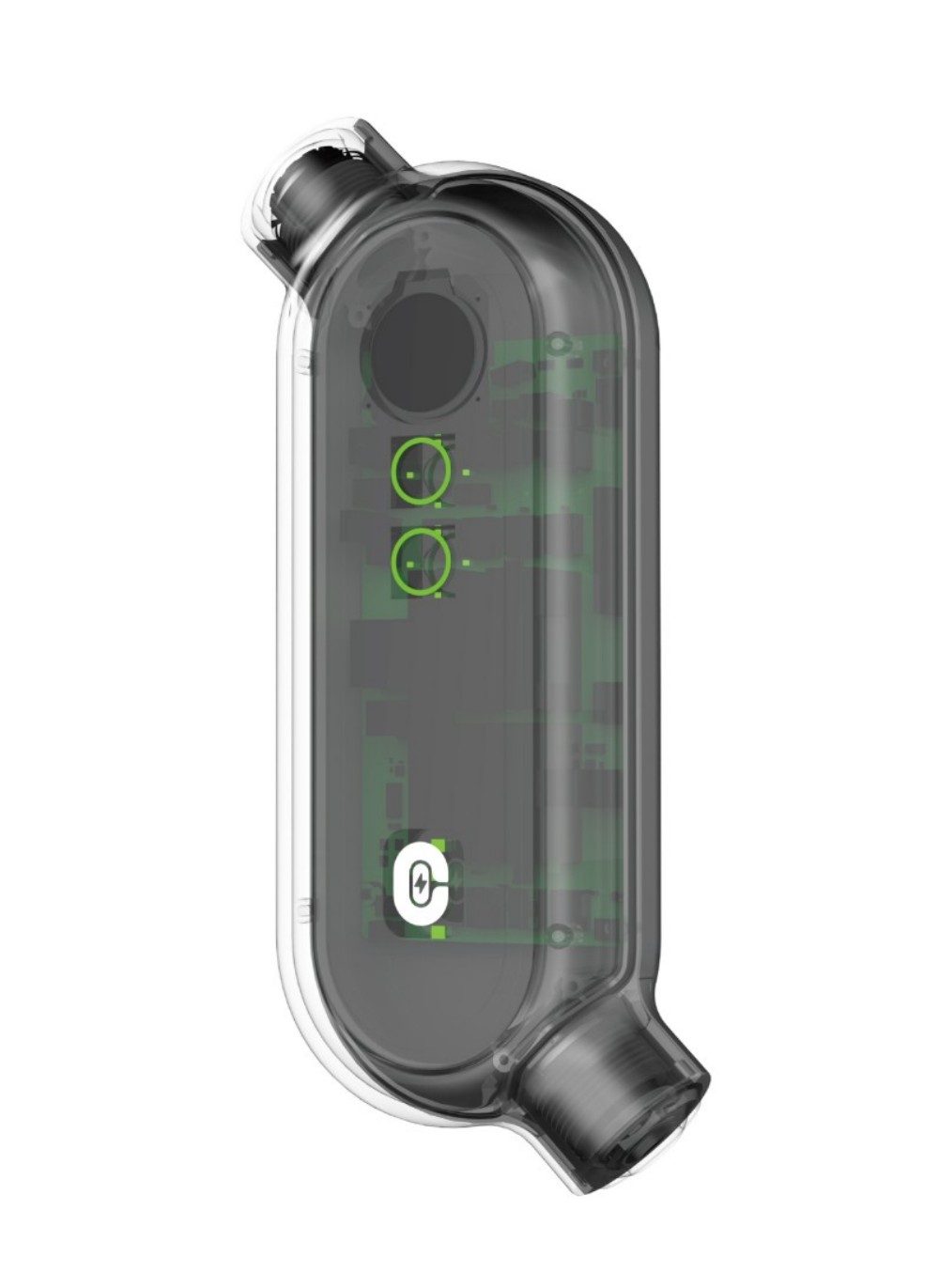

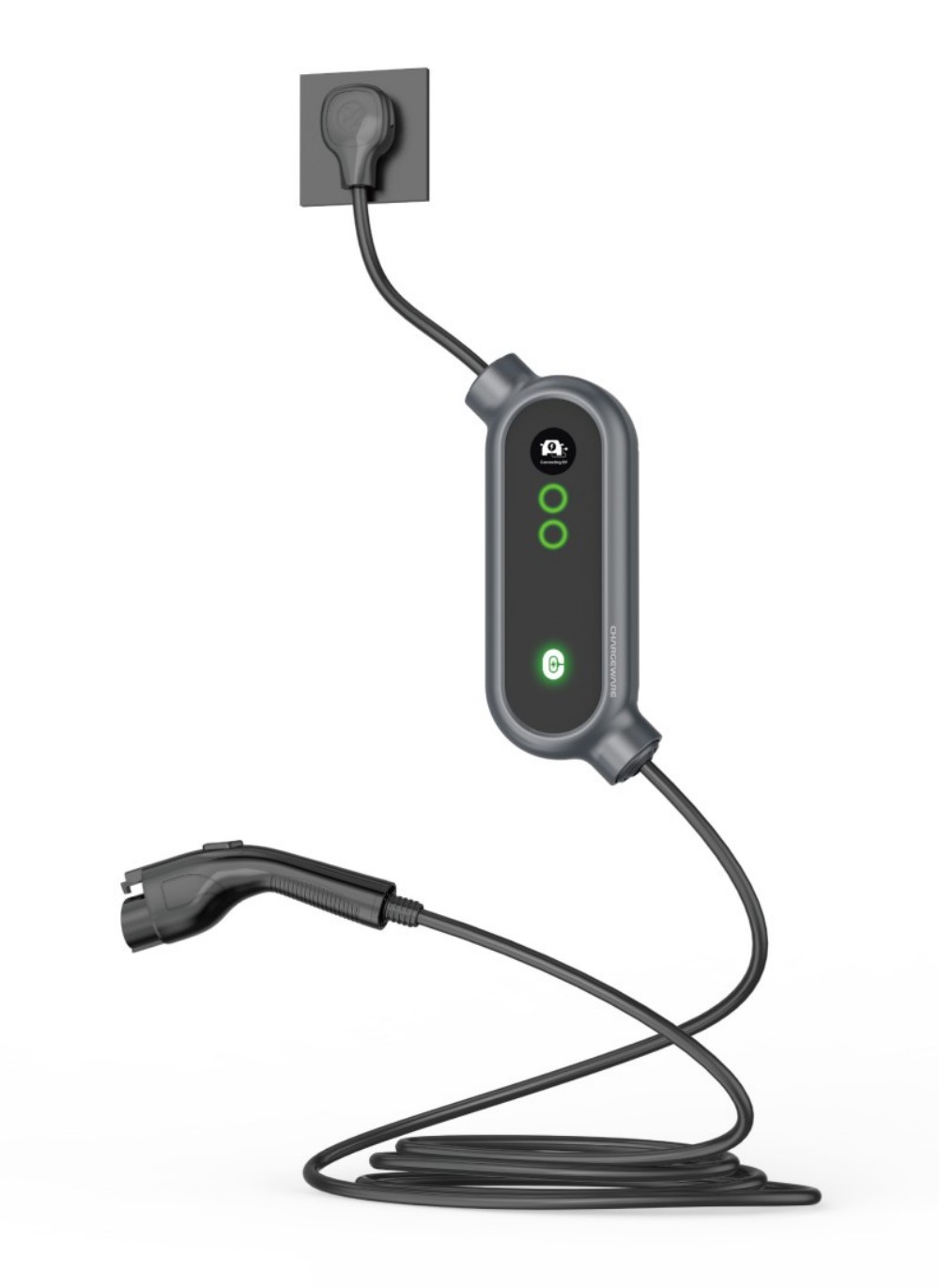

PORTABLE LEVEL 2 EV CHARGER

The Chargeware T-Series is a versatile Level 2 EV charger designed for both home and portable use. Supporting 120 V and 240 V input with up to 40 A output power, it delivers up to 9.6 kW of fast, reliable charging for any SAE J1772-compatible electric vehicle. Built with a durable NEMA 4X weatherproof enclosure and a 24-foot heavy-duty cable, the T-Series ensures safe and flexible operation in any environment — indoors or outdoors, rain or shine.

  • FEATURES
  • SPECIFICATIONS

Description

Chargeware T-Series Level 2 EV Charger provides fast, efficient, and reliable home charging with a powerful 40 A / 9.6 kW output. Compatible with all SAE J1772 electric vehicles and optional NACS adapter, it supports both Level 2 (240 V) and Level 1 (120 V) charging through its NEMA 14-50 plug and included NEMA 5-15 adapter. The 24-foot commercial-grade cable and NEMA 4X-rated weatherproof enclosure ensure dependable performance in garages or outdoor environments, while adjustable current settings from 10 A to 40 A and a 0–9 hour delayed-start function help optimize charging for off-peak energy use. Tested and certified by ETL, FCC, and Energy Star, the T-Series incorporates comprehensive protection against over-voltage, under-voltage, over-current, leakage, surge, grounding fault, over-temperature, and control-pilot faults, with a built-in CCID, clear LCD display for real-time status, and a 24-month warranty for peace of mind.

POWER
Input/Output Power Rating
9.6kW (240V AC, 40A)
Input/Output Voltage
120/208/240V ±15%
Frequency
50/60Hz
Adjustable Current
10/16/24/32/40A
Connector Type
SAE J1772
Cable Length
7.31m (24ft) commercial grade
Protection
Over voltage, Under voltage, Overheating, Overcurrent, Leakage, Grounding, Lightning protection
Power Cord
NEMA 14-50
Adapter
NEMA 14-50R to NEMA 5-15P
OPERATIONAL RATINGS
Enclosure Rating
NEMA Type 4X (Watertight)
Operating Temperature Range
-22⁰F ~ 122⁰F (-30⁰C ~ 50⁰C)
Storage Temperature Range
-40⁰F ~ 185⁰F (-40⁰C ~ 85⁰C)
Installation
Wall mounted
Dimensions(L * W * H)
305 × 140 × 65mm (12 x 5.5 x 2.6 inches)
Weight
5.1kg (11.2lbs)
USER INTERFACE
Display
LCD Screen (1.28 inch)
Status Indicator
LED Light
Connectivity
2.4GHz WiFi/Bluetooth
Charging Modes
Plug and charge/Schedule charging/APP control
APP
Charging remote controllable/OTA supported
CERTIFICATION & STANDARDS
Safety & Compliance
UL2594, UL2231
EMC Compliance
FCC Part-15
Warranty
24 Months
Certification
COMPATIBILITY
*Optional Type 1 (J1772) to NACS adapter available
NEMA 5-15
NEMA 14-50
Type 1-J1772
*NACS
